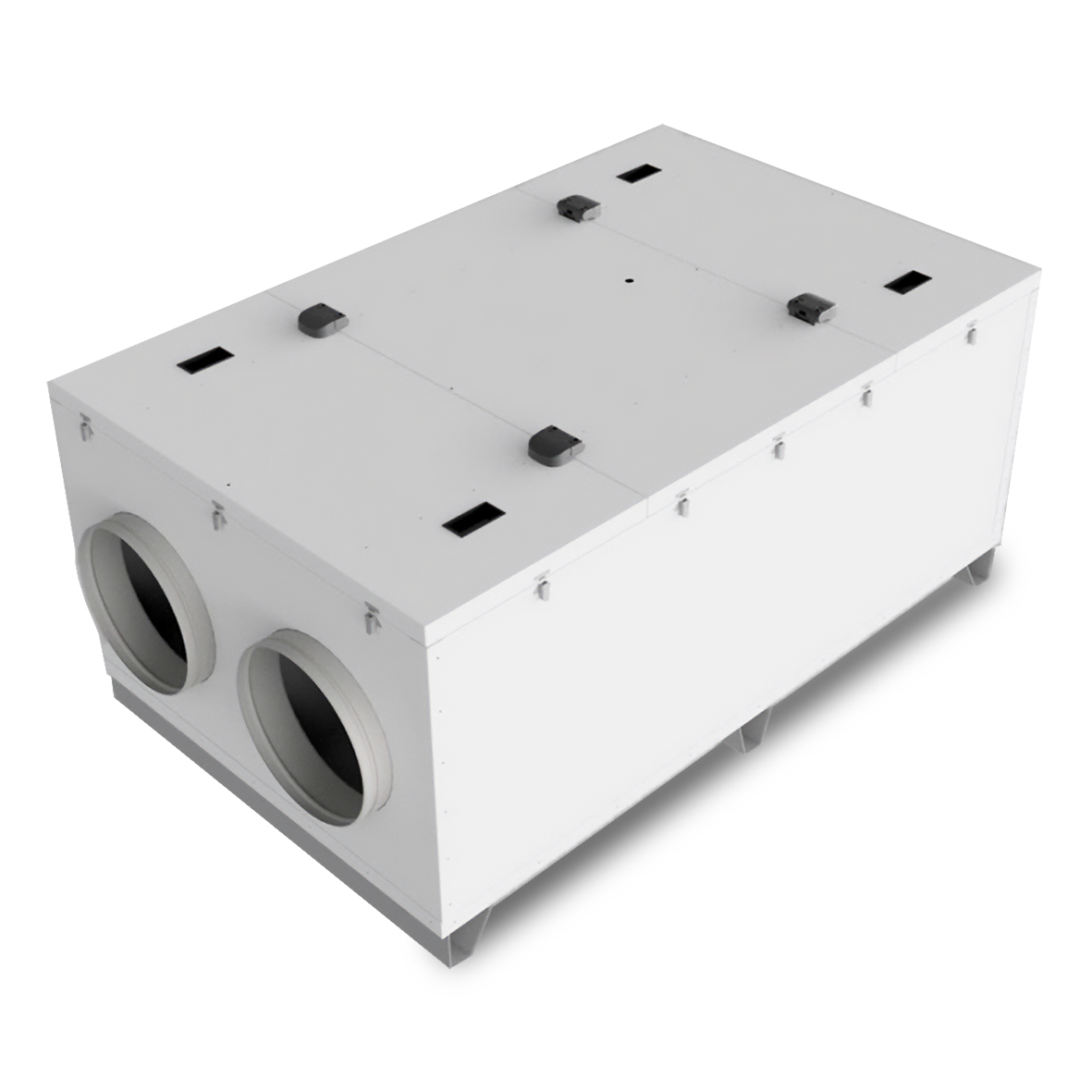

HR 3000 ERV Mechanical Ventilation Unit
Controlled mechanical ventilation unit for the commercial sector, featuring a high-efficiency counter-flow enthalpy heat recovery unit. Self-supporting structure made of pre-painted sheet metal (white pre-painted sheet metal on the outside, galvanised sheet metal on the inside) with thermal and acoustic insulation made of rock wool. EC centrifugal fans, filter pressure switch (only with Smart EB electronics), ISO ePM1 70% (F7) filters on the supply air and ISO ePM10 50% (M5) filters on the return air, bypass for free cooling.
- Maximum air flow rate: 1900 m³/h, static pressure up to 739 Pa
- Duct connections: Ø 400
- Power supply: 400 V AC – 50/60 Hz
- Weight: 270 kg
| File type | Description | Language | File |
|---|---|---|---|
| Technical specifications | HR 3000 ERV | EN |
| Code | Name | Installation | Control | Probe | Size lxhxd | Packaging |
|---|---|---|---|---|---|---|
| 703HR30HP3E1000E | HR 3000 HP 3E IP ERV | Floor-standing - Outdoor | Easy 3E | - - | 2000x1350x809 mm | 1 pc |
| 703HR30HPEB1002E | HR 3000 HS EB ERV | Horizontal ceiling-mounted - Outdoor | Smart EB | - - | 2000x1350x809 mm | 1 pc |
| 703HR30HPEB1202E | HR 3000 HS EB CO2 ERV | Horizontal ceiling-mounted - Outdoor | Smart EB | QA | 2000x1350x809 mm | 1 pc |
