PDC Floor Indoor Unit

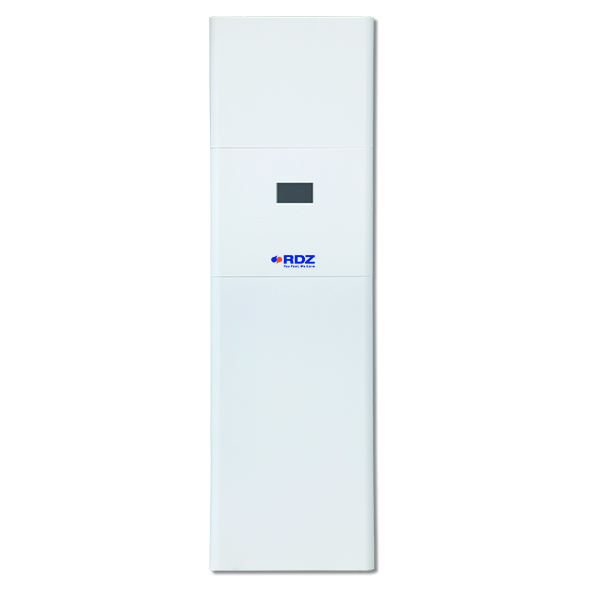

The PDC Floor UI indoor units are used for heating and cooling as well as for domestic hot water generation. They represent an elegant and compact solution: base is only 60x60 cm, while hydraulic and refrigerant connections are on the top of the unit to minimize overall dimensions on the two sides. All components are accessible from the front side of the module, thus making for fast and easy installation and maintenance. All PDC Floor UI indoor units include: • Brazed plates heat exchanger • DC Inverter (class A) circulation pump on primary circuit • 200-L inertial storage tank with instantaneous heat exchanger (stainless steel AISI 316L, 5.5 m² for domestic water) • Possibility to store DWH at a temperature higher than 56 °C thanks to auxiliary resistances • Expansion vessel for heating system and DHW tank (24 litres) • Safety valve • DHW diverter valve • Shut-off cocks and system filling • Water filter with shut-off cocks • Possibility to integrate the running of an auxiliary boiler • Automatic air venting to release trapped air • Possible connection to solar collectors • Control panel with a main switch in a watertight IP44 box N.B. If the system does not include an additional circulation pump, PDC Floor UI 12/12T/15/15T shall be equipped with an hydraulic separator between primary and secondary circuits, thus ensuring constant and reliable operation.
Read moreX
File type Description Language File
Energy Label PDC FLOOR 05
Multilingua
Energy Label PDC FLOOR 07
Multilingua
Energy Label PDC FLOOR 09
Multilingua
Energy Label PDC FLOOR 12
Multilingua
Energy Label PDC FLOOR 12T
Multilingua
Energy Label PDC FLOOR 15
Multilingua
Energy Label PDC FLOOR 15T
Multilingua
Technical specifications PDC FLOOR Erp Directive
IT -
EN
User Manual PDC WALL - PDC FLOOR
IT
Installation instructions PDC FLOOR
IT
CodeModelPower SupplySound Pressure (1m)Size wxhxdWeightPackage
70F05M000000 PDC 05 Floor UI 230 V30 dB(A)600x600x2000 mm172 Kg1 pc
70F07M000000 Unit 07 Floor UI 230 V30 dB(A)600x600x2000 mm172 Kg1 pc
70F09M000000 Unit 09 Floor UI 230 V30 dB(A)600x600x2000 mm172 Kg1 pc
70F12M000000 Unit 12 Floor UI 230 V31 dB(A)600x600x2000 mm172 Kg1 pc
70F12T000000 Unit 12T Floor UI 400 V31 dB(A)600x600x2000 mm172 Kg1 pc
70F15M000000 Unit 15 Floor UI 230 V31 dB(A)600x600x2000 mm172 Kg1 pc
70F15T000000 Unit 15T Floor UI 400 V31 dB(A)600x600x2000 mm172 Kg1 pc
70F05M000001 Solar kit 1 pc
70F05M000010 Kit for towel warmers 1 pc
70F05M000100 Separation kit 1 pc
70F05M001000 Auxiliary Resistances 6 kW 1 pc
70F05M020000 Web Server 1 pc
