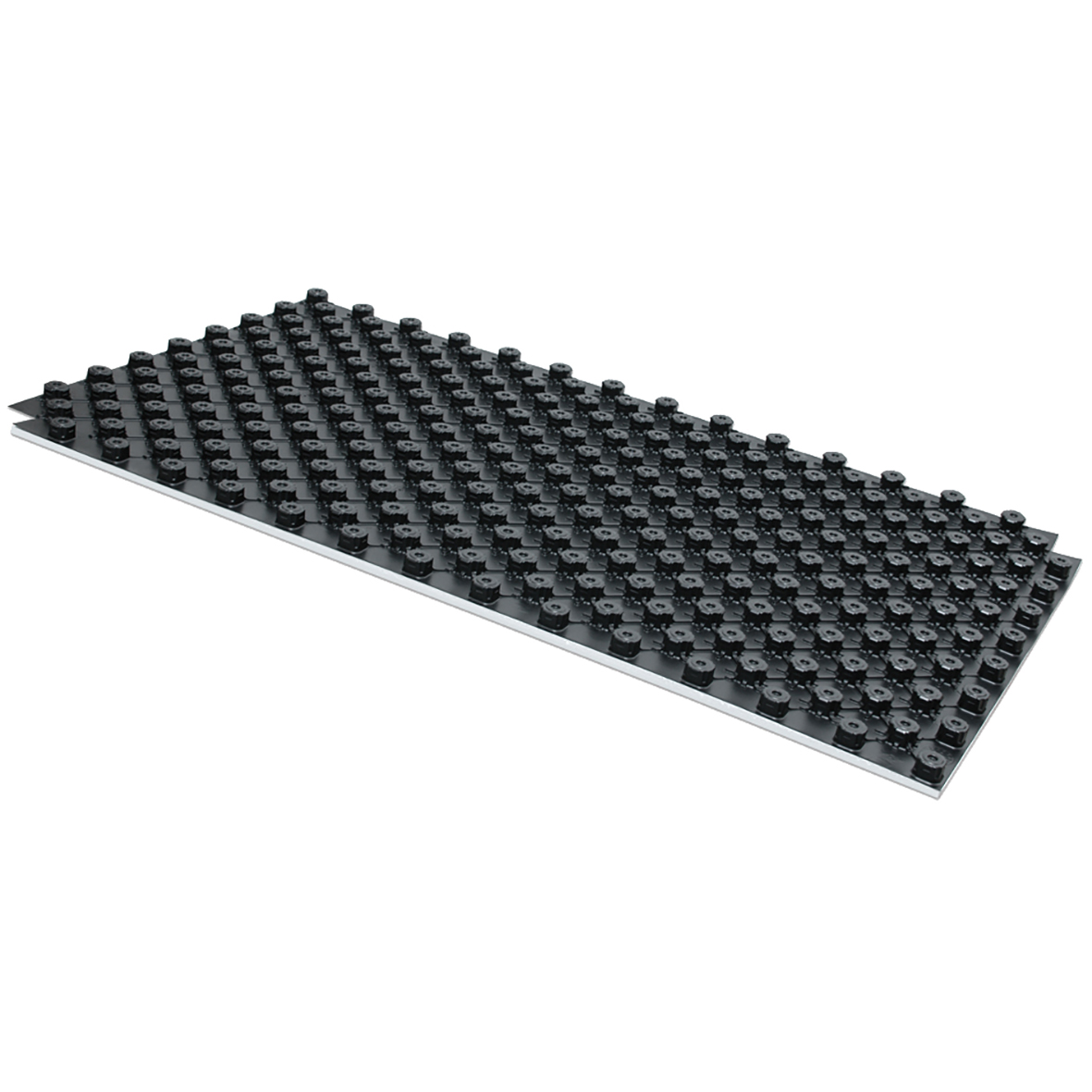

TF CAM Panel
TF CAM is a rusticated expanded polystyrene panel produced in accordance with UNI EN 13163, covered with 0.6 mm thick HIPS thermoformed film to give the slab greater resistance to deformation due to footsteps in accordance with EN 1264. Compression resistance according to UNI 826 of 150 kPa. Equipped with joints on all four sides for optimal coupling. Thermal conductivity 0.034 W/(m.k). Centre distance 5 cm.
Meets minimum environmental criteria (CAM).
| File type | Description | Language | File |
|---|---|---|---|
| Technical specifications | TF CAM Panel | IT |
| Code | Misure | Spessore | Conducibilità termica | Confezione | Disponibilità |
|---|---|---|---|---|---|
| 1045210CAM | 1400x800 mm | 10 mm | 0.034 W/(m·K) | 15.68 m² | 3 settimane |
| 1045220CAM | 1400x800 mm | 20 mm | 0.034 W/(m·K) | 11.20 m² | 3 settimane |
| 1045226CAM | 1400x800 mm | 26 mm | 0.030 W/(m·K) | 8.96 m² | 3 settimane |
| 1045230CAM | 1400x800 mm | 30 mm | 0.034 W/(m·K) | 8.96 m² | 3 settimane |
| 1045243CAM | 1400x800 mm | 43 mm | 0.034 W/(m·K) | 6.72 m² | 3 settimane |
