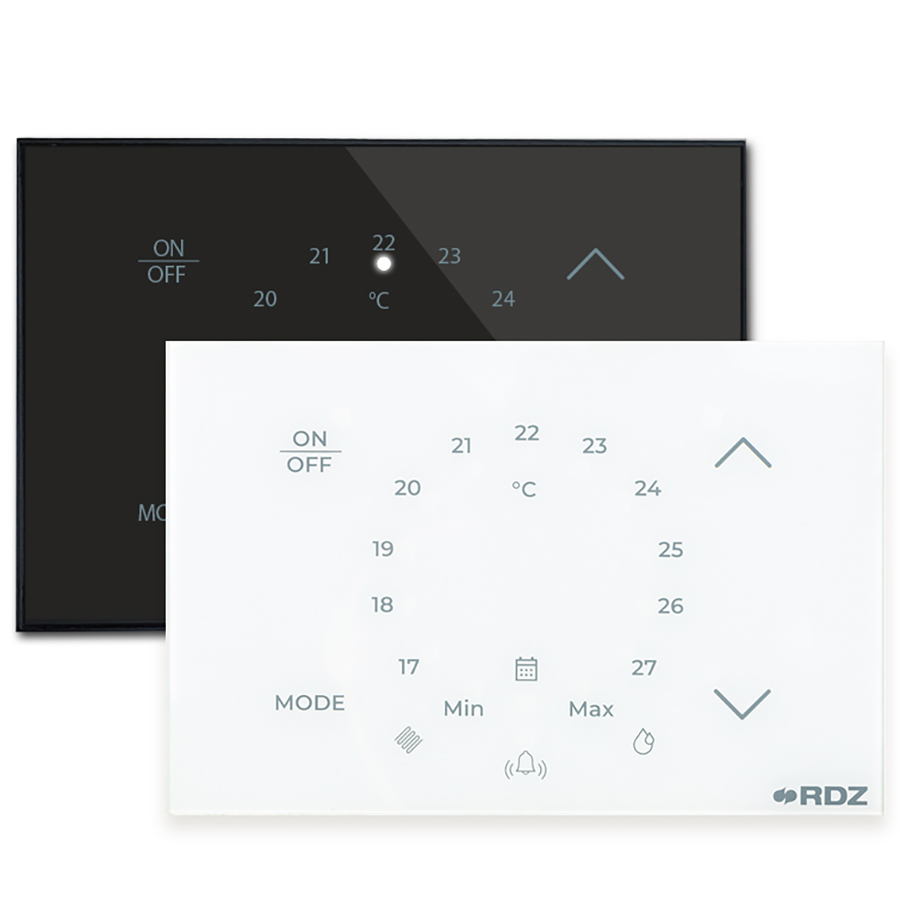

CORE TH
Core TH is the room controller that allows users to manage heating, cooling, and dehumidification in radiant systems.
Featuring a minimalist, user-friendly interface, it enables users to view the current temperature, adjust the desired set point, and select the operating mode.
The integrated probe calculates the dew point and, if necessary, can switch off the radiant system while keeping dehumidification active.
Features:
Set the operating mode
Read and adjust temperature and humidity
Dew point limit function
Built-in relay
Bus connection
| File type | Description | Language | File |
|---|---|---|---|
| Technical specifications | CoRe T | CoRe TH | IT - EN |
|
| User's guide | Core T | Core TH | EN |
| Code | Color | Power supply | BUS cable | Absorption | Installation module | Packaging |
|---|---|---|---|---|---|---|
| 6600152 | white | 12 Vdc | 2x0.5 mm | 60 mA | 503, 502 or ø 60mm | 1 pc |
| 6600158 | black | 12 Vdc | 2x0.5 mm | 60 mA | 503, 502 or ø 60mm | 1 pc |
