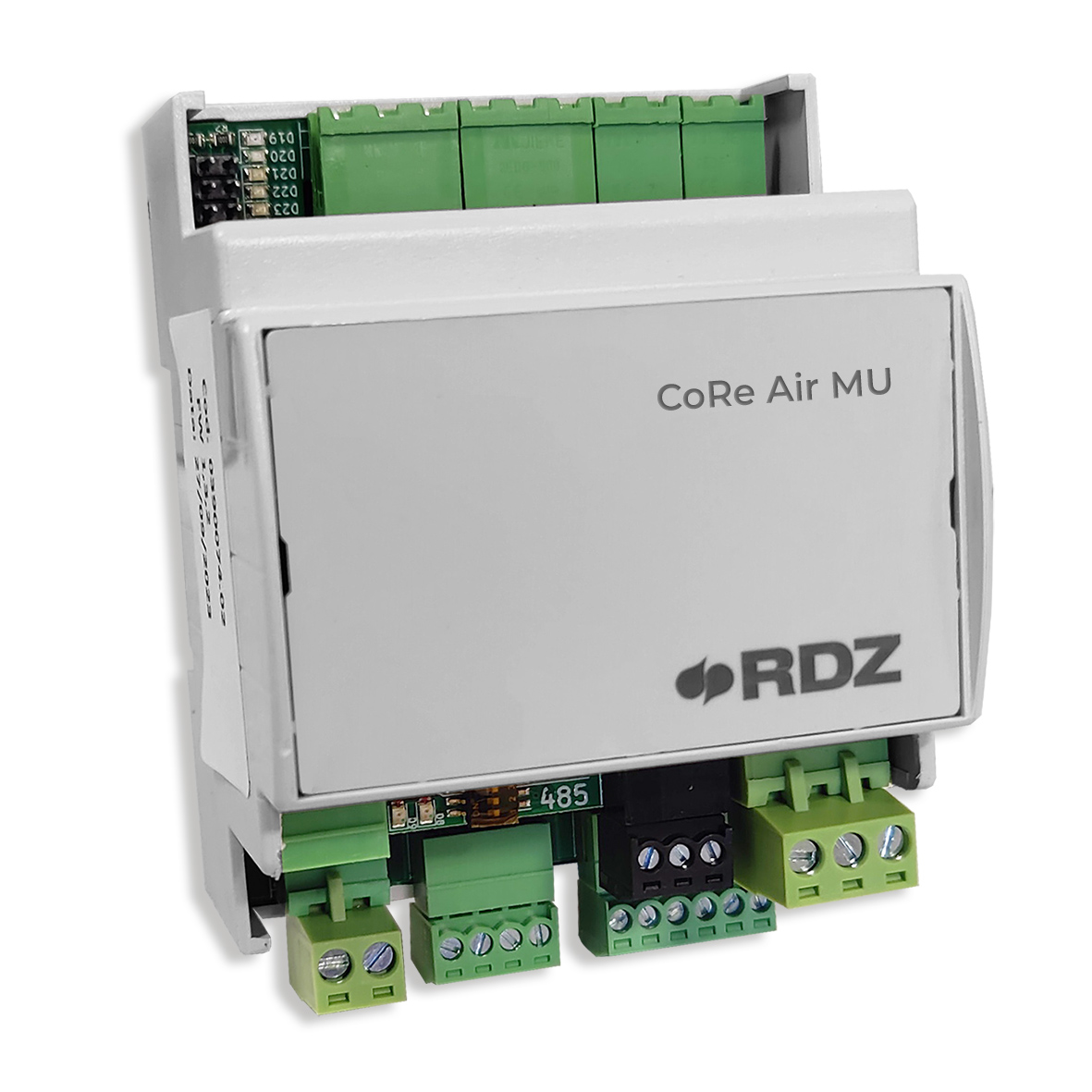

CORE AIR MU
Module for integrating AHUs without R-Bus into the CoRe system. The module is equipped with 5 digital outputs for managing different consents depending on the unit to be connected.
The outputs managed are:
- dehumidification
- integration
- renewal
- season
- 3 air circulation speeds
- boost
| File type | Description | Language | File |
|---|---|---|---|
| Technical specifications | CoRe Air MU | IT - EN |
| Code | Power supply | Cable BUS | Absorption | Installation module | Packaging |
|---|---|---|---|---|---|
| 7041483 | 12 Vdc | 2x0.5 mm | 175 mA | DIN 4 modules | 1 pz |
